VideometerLab

off

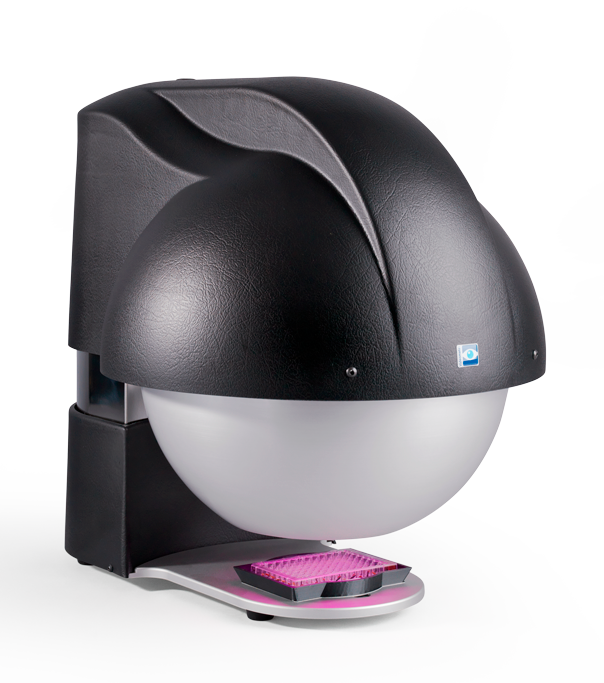

The VideometerLab Instrument is Videometer’s flagship instrument for multispectral image acquisition. It is used for reflectance imaging and optionally fluorescence and transmittance imaging.
Together with the leading edge VideometerLab software, it is used for both exploratory analysis, for calibration model construction and for routine quality control in a wide range of application areas. The Videometer technology provides accuracy, robustness and highly reproducible measurements.

• 19 strobes with wavelengths 365-970 nm
• Perfect integrating sphere for optimal light distribution
• Minimized noise from shading and specular reflections
• Extended dynamic range through strobed illumination
• One optional illumination

• 19 wavelengths ranging from 365 nm to 970 nm.

• Image size: 3000*4096.

• Resolution: 30 µm/pixel.

• Dynamic range: optimized according to the application using autolight setup.

• Calibration: Absolute reflectance calibration using 2 reflectance calibration targets and one geometric target

• Simple calibration wizard procedure that takes 3 minutes.

• Time of complete analysis: 5-10 seconds per sample.

• Power supply: 110-240 VAC, 50/60 Hz

• Ambient temperature: Operation: 5-40 °C, Storage: –5-50 °C.

• Ambient humidity: 20-90% RH non-condensing.

• PC requirements: Intel i7 12th generation or better, 32 GB RAM, USB3 SuperSpeed port.

• Software requirements: Microsoft Windows 10/11 Professional 64 bit, full Windows update.

• Height: 460-560 mm

• Width: 430 mm

• Depth: 600mm

• Weight: 13,2 kg

• Field of view: 90x123mm

Add-Ons

VideometerLab

Terms and Conditions Extract

Preface

The Videometer Webshop is entirely reserved for Business-to-Business customers, and Company Name and VAT no. (only for EU) are required, either at registration or at chek out.

All prices stated are listed in DKK exclusive of VAT.

Delivery

Delivery of tangible products within EU according to Incoterms DAP at the Buyers premises.

Shipment Incoterms outside of EU to be agreed before Order Confirmation.

Delivery time is of maximum 8-12 weeks for tangible products.

Return and Cancellation

The Videometer Webshop has a non-return and non-cancellation policy for any confirmed order.

However products can be returned subject to a prior written agreement with the Seller. Products returned shall always be unused, undamaged and contained in the original packing.

Full Terms and Conditions

To read the full document "General Terms of Sales and Delivery", click here.
